SKU

295370

Dispatch (2016 - ) Mk3 Panel Van, XL, Length: 5309mm, Sliding Door Dual

Name: Dispatch (2016 - ) Mk3 Panel Van, XL, Length: 5309mm, Sliding Door Dual
SKU: 295370
Price: 278.75 GBP
Availability: InStock

https://bottsmartvan.co.uk/media/catalog/product/cache/e8277b3a92315e64135fe86b2311fd41/x/l/xl_standard_dsd-01_y57.0.3.1.12.0__1.png

Citroen

Dispatch (2016 - ) Mk3 Panel Van

XL, Sliding Door Dual

£278.75

Floor (F1) £0.00

Please note - you will need to remove any existing flooring in order to fit ours.

If not required, please leave empty.

https://bottsmartvan.co.uk/media/catalog/product/cache/12879b3171b2f046dad5cefdc89cdccd/1/1/11732184.jpg

1 x Floor Kit M3-F2212 - 11732184.01M ex. VAT+ £325.80

Our fully profiled, anti-slip ply flooring for vans are hardwearing and easy to clean. The robust material helps protect the load space against unnecessary damage in day to day use and helps retain the value of your vehicle for the long term.
Lightweight and moisture-resistant 12 mm birch plywood floor
Upper surface: robust slip-resistant synthetic resin film coating with bott decor
Underside: synthetic resin film coating with a smooth surface

Dimensions (mm) : 2786 x 1589 x 12

Weight (kg): 32.97

This item is selected

Left Hand Rear (LH1) £0.00

Select one of the following racks for the left hand rear of the van.

If not required, leave unselected.

https://bottsmartvan.co.uk/media/catalog/product/cache/12879b3171b2f046dad5cefdc89cdccd/m/o/mod_m3-5101_preview_2.jpg

1 x Module M3-5101 - 19027508.19V ex. VAT+ £478.15

Van Racking Module M3-5101 fits on the left-hand side to the existing fixing points in the van. Accessories can be adjusted within the metal frames, providing you with the flexibility to create a more efficient space as your work and tools evolve over time.
Frame
1 x 1058W x 1255H frame
1 x fixing pack with van specific brackets

Accessories (top to bottom)
1 x 978W x 260D shelf with mat
2 x 978W x 337D shelf with mat
1 x 978W x 135D shelf with mat

Dimensions (mm) : 1058 x 337 x 1255

Weight (kg): 29.28

Load Capacity (kg): 75

This item is selected

https://bottsmartvan.co.uk/media/catalog/product/cache/12879b3171b2f046dad5cefdc89cdccd/m/o/mod_m3-5102_preview_2.jpg

1 x Module M3-5102 - 19027518.19V ex. VAT+ £697.25

Van Racking Module M3-5102 fits on the left-hand side to the existing fixing points in the van. Accessories can be adjusted within the metal frames, providing you with the flexibility to create a more efficient space as your work and tools evolve over time.

Frame
1 x 1058W x 1255H frame
1 x fixing pack with van specific brackets

LH Accessories (top to bottom)
4 x 530W case holder shelf
1 x 530W x 135D shelf with mat
1 x 1255H frame full internal upright

RH Accessories (top to bottom)
1 x 418W x 260D shelf with mat
2 x 418W x 337D shelf with mat
1 x 418W x 335D x 180H slide drawer
1 x 418W x 135D shelf with mat

Dimensions (mm) : 1058 x 337 x 1255

Weight (kg): 37.69

Load Capacity (kg): 75

This item is selected

https://bottsmartvan.co.uk/media/catalog/product/cache/12879b3171b2f046dad5cefdc89cdccd/m/o/mod_m3-5103_preview_2.jpg

1 x Module M3-5103 - 19027528.19V ex. VAT+ £673.00

Van Racking Module M3-5103 fits on the left-hand side to the existing fixing points in the van. Accessories can be adjusted within the metal frames, providing you with the flexibility to create a more efficient space as your work and tools evolve over time.

Frame
1 x 1058W x 1255H frame
1 x fixing pack with van specific brackets

LH Accessories (top to bottom)
4 x 530W case holder shelf
1 x 530W x 135D shelf with mat
1 x 1255H frame full internal upright

RH Accessories (top to bottom)
3 x 418W Eurobox holder kit + Eurobox 400 x 300 x 235
1 x 418W x 135D shelf with mat

Dimensions (mm) : 1058 x 337 x 1255

Weight (kg): 34.01

Load Capacity (kg): 75

This item is selected

https://bottsmartvan.co.uk/media/catalog/product/cache/12879b3171b2f046dad5cefdc89cdccd/m/o/mod_m3-5104_preview_2.jpg

1 x Module M3-5104 - 19027538.19V ex. VAT+ £758.50

Van Racking Module M3-5104 fits on the left-hand side to the existing fixing points in the van. Accessories can be adjusted within the metal frames, providing you with the flexibility to create a more efficient space as your work and tools evolve over time.

Frame
1 x 1058W x 1255H frame
1 x fixing pack with van specific brackets

LH Accessories (top to bottom)
1 x bott Systainer³ M 137
2 x bott Systainer³ M 187
1 x 418W x 335D x 180H slide drawer
1 x 418W x 135D shelf with mat
1 x 1255H frame full internal upright

RH Accessories (top to bottom)
1 x 530W x 260D shelf with mat
2 x 530W x 337D shelf with mat
1 x 530W x 335D x 180H slide drawer
1 x 530W x 135D shelf with mat

Dimensions (mm) : 1058 x 337 x 1255

Weight (kg): 38.77

Load Capacity (kg): 75

This item is selected

https://bottsmartvan.co.uk/media/catalog/product/cache/12879b3171b2f046dad5cefdc89cdccd/m/o/mod_m3-5110_preview_2.jpg

1 x Module M3-5110 - 19027628.19V ex. VAT+ £632.70

Van Racking Module M3-5110 fits on the left-hand side to the existing fixing points in the van. Accessories can be adjusted within the metal frames, providing you with the flexibility to create a more efficient space as your work and tools evolve over time.
Frame
1 x 1058W x 1255H frame
1 x fixing pack with van specific brackets

LH Accessories (top to bottom)
2 x bott Systainer³ runner kit (418W)
1 x 418W x 337D shelf with mat
1 x bott Systainer³ runner kit (418W)
1 x 418W x 135D shelf with mat
2 x 1255H frame full internal upright

RH Accessories (top to bottom)
2 x 418W Eurobox and bott Systainer T-LOC holder kit
1 x 418W x 337D shelf with mat
1 x 418W Eurobox and bott Systainer T-LOC holder kit
1 x 418W x 135D shelf with mat

Dimensions (mm) : 1058 x 337 x 1255

Weight (kg): 32.51

Load Capacity (kg): 75

This item is selected

https://bottsmartvan.co.uk/media/catalog/product/cache/12879b3171b2f046dad5cefdc89cdccd/m/o/mod_m3-5105_preview_2.jpg

1 x Module M3-5105 - 19027548.19V ex. VAT+ £628.60

Van Racking Module M3-5105 fits on the left-hand side to the existing fixing points in the van. Accessories can be adjusted within the metal frames, providing you with the flexibility to create a more efficient space as your work and tools evolve over time.

Frame
1 x 1058W x 1255H frame
1 x fixing pack with van specific brackets

LH Accessories (top to bottom)
2 x 530W x 135D x 375H perfo panel
2 x 530W x 135D shelf with mat
1 x 1255H frame full internal upright

RH Accessories (top to bottom)
1 x 418W x 260D shelf with mat
2 x 418W x 337D shelf with mat
1 x 418W x 335D x 180H slide drawer
1 x 418W x 135D shelf with mat

Dimensions (mm) : 1058 x 337 x 1255

Weight (kg): 34.78

Load Capacity (kg): 75

This item is selected

https://bottsmartvan.co.uk/media/catalog/product/cache/12879b3171b2f046dad5cefdc89cdccd/m/o/mod_m3-5106_preview_2.jpg

1 x Module M3-5106 - 19027558.19V ex. VAT+ £900.20

Van Racking Module M3-5106 fits on the left-hand side to the existing fixing points in the van. Accessories can be adjusted within the metal frames, providing you with the flexibility to create a more efficient space as your work and tools evolve over time.

Frame
1 x 1058W x 1255H frame
1 x fixing pack with van specific brackets

LH Accessories (top to bottom)
3 x bott Systainer³ Organizer M 89-18
2 x bott Systainer³ M 187
1 x 418W x 135D shelf with mat
1 x 1255H frame full internal upright

RH Accessories (top to bottom)
1 x 530W x 260D shelf with mat
2 x 530W x 337D shelf with mat
1 x bott Systainer³ L 187
1 x 530W x 135D shelf with mat

Dimensions (mm) : 1058 x 337 x 1255

Weight (kg): 43.67

Load Capacity (kg): 75

This item is selected

https://bottsmartvan.co.uk/media/catalog/product/cache/12879b3171b2f046dad5cefdc89cdccd/m/o/mod_m3-5108_preview_2.jpg

1 x Module M3-5108 - 19027608.19V ex. VAT+ £792.20

Van Racking Module M3-5108 fits on the left-hand side to the existing fixing points in the van. Accessories can be adjusted within the metal frames, providing you with the flexibility to create a more efficient space as your work and tools evolve over time.

Frame
1 x 1058W x 1255H frame
1 x fixing pack with van specific brackets

LH Accessories (top to bottom)
2 x bott Systainer³ L 187
1 x 530W x 337D shelf with mat
1 x bott Systainer³ L 187
1 x 530W x 135D shelf with mat
1 x 1255H frame full internal upright

RH Accessories (top to bottom)
2 x 418W Eurobox and bott Systainer T-LOC holder kit
1 x 418W x 337D shelf with mat
1 x 418W Eurobox and bott Systainer T-LOC holder kit
1 x 418W x 135D shelf with mat

Dimensions (mm) : 1058 x 337 x 1255

Weight (kg): 37.48

Load Capacity (kg): 75

This item is selected

https://bottsmartvan.co.uk/media/catalog/product/cache/12879b3171b2f046dad5cefdc89cdccd/m/o/mod_m3-5107_preview_2.jpg

1 x Module M3-5107 - 19027568.19V ex. VAT+ £812.40

Van Racking Module M3-5107 fits on the left-hand side to the existing fixing points in the van. Accessories can be adjusted within the metal frames, providing you with the flexibility to create a more efficient space as your work and tools evolve over time.
Frame
1 x 1058W x 1255H frame
1 x fixing pack with van specific brackets

LH Accessories (top to bottom)
2 x bott Systainer³ Organizer M 89-18
1 x 418W x 337D shelf with mat
1 x 130W x 298D bottBox kit (3 boxes)
1 x 418W cable reel holder shelf
1 x 418W x 135D shelf with mat
1 x 1255H frame full internal upright

RH Accessories (top to bottom)
1 x 530W x 260D shelf with mat
1 x 530W x 337D shelf with mat
1 x 130W x 298D bottBox kit (3 boxes)
1 x 530W cable reel holder shelf
1 x 530W x 135D shelf with mat

Dimensions (mm) : 1058 x 337 x 1255

Weight (kg): 42.98

Load Capacity (kg): 75

This item is selected

https://bottsmartvan.co.uk/media/catalog/product/cache/12879b3171b2f046dad5cefdc89cdccd/m/o/mod_m3-5109_preview_2.jpg

1 x Module M3-5109 - 19027618.19V ex. VAT+ £712.15

Van Racking Module M3-5109 fits on the left-hand side to the existing fixing points in the van. Accessories can be adjusted within the metal frames, providing you with the flexibility to create a more efficient space as your work and tools evolve over time.

Frame
1 x 1058W x 1255H frame
1 x fixing pack with van specific brackets

LH Accessories (top to bottom)
2 x 418W Eurobox and bott Systainer T-LOC holder kit
1 x 418W x 337D shelf with mat
1 x 418W Eurobox and bott Systainer T-LOC holder kit
1 x 418W x 135D shelf with mat
2 x 1255H frame full internal upright

RH Accessories (top to bottom)
2 x 418W Eurobox and bott Systainer T-LOC holder kit
1 x 418W x 337D shelf with mat
1 x 418W Eurobox and bott Systainer T-LOC holder kit
1 x 418W x 135D shelf with mat

Dimensions (mm) : 1058 x 337 x 1255

Weight (kg): 34.41

Load Capacity (kg): 75

This item is selected

Right Hand Rear (RH1) £0.00

Select one of the following racks for the right hand rear of the van.

If not required, leave unselected.

https://bottsmartvan.co.uk/media/catalog/product/cache/12879b3171b2f046dad5cefdc89cdccd/m/o/mod_m3-5201_preview_2.jpg

1 x Module M3-5201 - 19027509.19V ex. VAT+ £478.35

Van Racking Module M3-5201 fits on the right-hand side to the existing fixing points in the van. Accessories can be adjusted within the metal frames, providing you with the flexibility to create a more efficient space as your work and tools evolve over time.

Frame
1 x 1058W x 1255H frame
1 x fixing pack with van specific brackets

Accessories (top to bottom)
1 x 978W x 260D shelf with mat
2 x 978W x 337D shelf with mat
1 x 978W x 135D shelf with mat

Dimensions (mm) : 1058 x 337 x 1255

Weight (kg): 29.28

Load Capacity (kg): 75

This item is selected

https://bottsmartvan.co.uk/media/catalog/product/cache/12879b3171b2f046dad5cefdc89cdccd/m/o/mod_m3-5202_preview_2.jpg

1 x Module M3-5202 - 19027519.19V ex. VAT+ £697.45

Van Racking Module M3-5202 fits on the right-hand side to the existing fixing points in the van. Accessories can be adjusted within the metal frames, providing you with the flexibility to create a more efficient space as your work and tools evolve over time.

Frame
1 x 1058W x 1255H frame
1 x fixing pack with van specific brackets

LH Accessories (top to bottom)
4 x 530W case holder shelf
1 x 530W x 135D shelf with mat
1 x 1255H frame full internal upright

RH Accessories (top to bottom)
1 x 418W x 260D shelf with mat
2 x 418W x 337D shelf with mat
1 x 418W x 335D x 180H slide drawer
1 x 418W x 135D shelf with mat

Dimensions (mm) : 1058 x 337 x 1255

Weight (kg): 37.69

Load Capacity (kg): 75

This item is selected

https://bottsmartvan.co.uk/media/catalog/product/cache/12879b3171b2f046dad5cefdc89cdccd/m/o/mod_m3-5203_preview_2.jpg

1 x Module M3-5203 - 19027529.19V ex. VAT+ £673.20

Van Racking Module M3-5203 fits on the right-hand side to the existing fixing points in the van. Accessories can be adjusted within the metal frames, providing you with the flexibility to create a more efficient space as your work and tools evolve over time.
Frame
1 x 1058W x 1255H frame
1 x fixing pack with van specific brackets

LH Accessories (top to bottom)
4 x 530W case holder shelf
1 x 530W x 135D shelf with mat
1 x 1255H frame full internal upright

RH Accessories (top to bottom)
3 x 418W Eurobox holder kit + Eurobox 400 x 300 x 235
1 x 418W x 135D shelf with mat

Dimensions (mm) : 1058 x 337 x 1255

Weight (kg): 34.01

Load Capacity (kg): 75

This item is selected

https://bottsmartvan.co.uk/media/catalog/product/cache/12879b3171b2f046dad5cefdc89cdccd/m/o/mod_m3-5204_preview_2.jpg

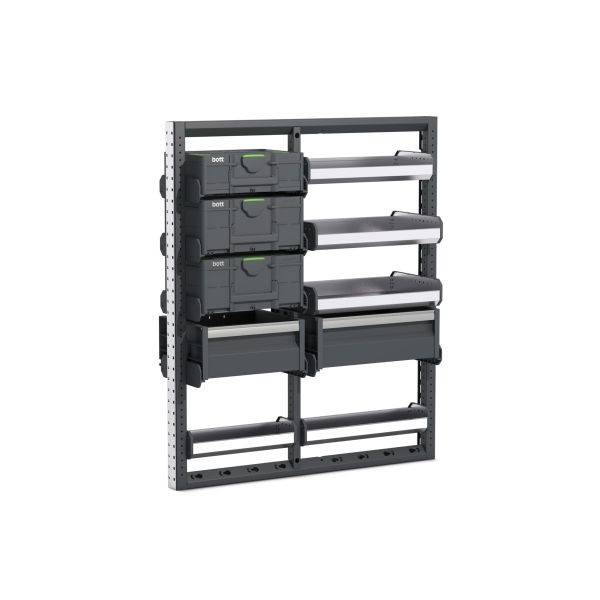

1 x Module M3-5204 - 19027539.19V ex. VAT+ £758.70

Van Racking Module M3-5204 fits on the right-hand side to the existing fixing points in the van. Accessories can be adjusted within the metal frames, providing you with the flexibility to create a more efficient space as your work and tools evolve over time.

Frame
1 x 1058W x 1255H frame
1 x fixing pack with van specific brackets

LH Accessories (top to bottom)
1 x bott Systainer³ M 137
2 x bott Systainer³ M 187
1 x 418W x 335D x 180H slide drawer
1 x 418W x 135D shelf with mat
1 x 1255H frame full internal upright

RH Accessories (top to bottom)
1 x 530W x 260D shelf with mat
2 x 530W x 337D shelf with mat
1 x 530W x 335D x 180H slide drawer
1 x 530W x 135D shelf with mat

Dimensions (mm) : 1058 x 337 x 1255

Weight (kg): 38.77

Load Capacity (kg): 75

This item is selected

https://bottsmartvan.co.uk/media/catalog/product/cache/12879b3171b2f046dad5cefdc89cdccd/m/o/mod_m3-5210_preview_2.jpg

1 x Module M3-5210 - 19027629.19V ex. VAT+ £632.90

Van Racking Module M3-5210 fits on the right-hand side to the existing fixing points in the van. Accessories can be adjusted within the metal frames, providing you with the flexibility to create a more efficient space as your work and tools evolve over time.

Frame
1 x 1058W x 1255H frame
1 x fixing pack with van specific brackets

LH Accessories (top to bottom)
2 x bott Systainer³ runner kit (418W)
1 x 418W x 337D shelf with mat
1 x bott Systainer³ runner kit (418W)
1 x 418W x 135D shelf with mat
2 x 1255H frame full internal upright

RH Accessories (top to bottom)
2 x 418W Eurobox and bott Systainer T-LOC holder kit
1 x 418W x 337D shelf with mat
1 x 418W Eurobox and bott Systainer T-LOC holder kit
1 x 418W x 135D shelf with mat

Dimensions (mm) : 1058 x 337 x 1255

Weight (kg): 32.51

Load Capacity (kg): 75

This item is selected

https://bottsmartvan.co.uk/media/catalog/product/cache/12879b3171b2f046dad5cefdc89cdccd/m/o/mod_m3-5205_preview_2.jpg

1 x Module M3-5205 - 19027549.19V ex. VAT+ £628.80

Van Racking Module M3-5205 fits on the right-hand side to the existing fixing points in the van. Accessories can be adjusted within the metal frames, providing you with the flexibility to create a more efficient space as your work and tools evolve over time.

Frame
1 x 1058W x 1255H frame
1 x fixing pack with van specific brackets

LH Accessories (top to bottom)
2 x 530W x 135D x 375H perfo panel
2 x 530W x 135D shelf with mat
1 x 1255H frame full internal upright

RH Accessories (top to bottom)
1 x 418W x 260D shelf with mat
2 x 418W x 337D shelf with mat
1 x 418W x 335D x 180H slide drawer
1 x 418W x 135D shelf with mat

Dimensions (mm) : 1058 x 337 x 1255

Weight (kg): 34.78

Load Capacity (kg): 75

This item is selected

https://bottsmartvan.co.uk/media/catalog/product/cache/12879b3171b2f046dad5cefdc89cdccd/m/o/mod_m3-5206_preview_2.jpg

1 x Module M3-5206 - 19027559.19V ex. VAT+ £900.40

Van Racking Module M3-5206 fits on the right-hand side to the existing fixing points in the van. Accessories can be adjusted within the metal frames, providing you with the flexibility to create a more efficient space as your work and tools evolve over time.

Frame
1 x 1058W x 1255H frame
1 x fixing pack with van specific brackets

LH Accessories (top to bottom)
3 x bott Systainer³ Organizer M 89-18
2 x bott Systainer³ M 187
1 x 418W x 135D shelf with mat
1 x 1255H frame full internal upright

RH Accessories (top to bottom)
1 x 530W x 260D shelf with mat
2 x 530W x 337D shelf with mat
1 x bott Systainer³ L 187
1 x 530W x 135D shelf with mat

Dimensions (mm) : 1058 x 337 x 1255

Weight (kg): 43.67

Load Capacity (kg): 75

This item is selected

https://bottsmartvan.co.uk/media/catalog/product/cache/12879b3171b2f046dad5cefdc89cdccd/m/o/mod_m3-5208_preview_2.jpg

1 x Module M3-5208 - 19027609.19V ex. VAT+ £792.40

Van Racking Module M3-5208 fits on the right-hand side to the existing fixing points in the van. Accessories can be adjusted within the metal frames, providing you with the flexibility to create a more efficient space as your work and tools evolve over time.

Frame
1 x 1058W x 1255H frame
1 x fixing pack with van specific brackets

LH Accessories (top to bottom)
2 x bott Systainer³ L 187
1 x 530W x 337D shelf with mat
1 x bott Systainer³ L 187
1 x 530W x 135D shelf with mat
1 x 1255H frame full internal upright

RH Accessories (top to bottom)
2 x 418W Eurobox and bott Systainer T-LOC holder kit
1 x 418W x 337D shelf with mat
1 x 418W Eurobox and bott Systainer T-LOC holder kit
1 x 418W x 135D shelf with mat

Dimensions (mm) : 1058 x 337 x 1255

Weight (kg): 37.48

Load Capacity (kg): 75

This item is selected

https://bottsmartvan.co.uk/media/catalog/product/cache/12879b3171b2f046dad5cefdc89cdccd/m/o/mod_m3-5207_preview_2.jpg

1 x Module M3-5207 - 19027569.19V ex. VAT+ £812.60

Van Racking Module M3-5207 fits on the right-hand side to the existing fixing points in the van. Accessories can be adjusted within the metal frames, providing you with the flexibility to create a more efficient space as your work and tools evolve over time.

Frame
1 x 1058W x 1255H frame
1 x fixing pack with van specific brackets

LH Accessories (top to bottom)
2 x bott Systainer³ Organizer M 89-18
1 x 418W x 337D shelf with mat
1 x 130W x 298D bottBox kit (3 boxes)
1 x 418W cable reel holder shelf
1 x 418W x 135D shelf with mat
1 x 1255H frame full internal upright

RH Accessories (top to bottom)
1 x 530W x 260D shelf with mat
1 x 530W x 337D shelf with mat
1 x 130W x 298D bottBox kit (3 boxes)
1 x 530W cable reel holder shelf
1 x 530W x 135D shelf with mat

Dimensions (mm) : 1058 x 337 x 1255

Weight (kg): 42.98

Load Capacity (kg): 75

This item is selected

https://bottsmartvan.co.uk/media/catalog/product/cache/12879b3171b2f046dad5cefdc89cdccd/m/o/mod_m3-5209_preview_2.jpg

1 x Module M3-5209 - 19027619.19V ex. VAT+ £712.35

Van Racking Module M3-5209 fits on the right-hand side to the existing fixing points in the van. Accessories can be adjusted within the metal frames, providing you with the flexibility to create a more efficient space as your work and tools evolve over time.

Frame
1 x 1058W x 1255H frame
1 x fixing pack with van specific brackets

LH Accessories (top to bottom)
2 x 418W Eurobox and bott Systainer T-LOC holder kit
1 x 418W x 337D shelf with mat
1 x 418W Eurobox and bott Systainer T-LOC holder kit
1 x 418W x 135D shelf with mat
2 x 1255H frame full internal upright

RH Accessories (top to bottom)
2 x 418W Eurobox and bott Systainer T-LOC holder kit
1 x 418W x 337D shelf with mat
1 x 418W Eurobox and bott Systainer T-LOC holder kit
1 x 418W x 135D shelf with mat

Dimensions (mm) : 1058 x 337 x 1255

Weight (kg): 34.41

Load Capacity (kg): 75

This item is selected

Right Hand Front (RH2) £0.00

Select one of the following racks for the right hand front of the van.

If not required, leave unselected.

https://bottsmartvan.co.uk/media/catalog/product/cache/12879b3171b2f046dad5cefdc89cdccd/m/o/mod_m3-5601_preview_2.jpg

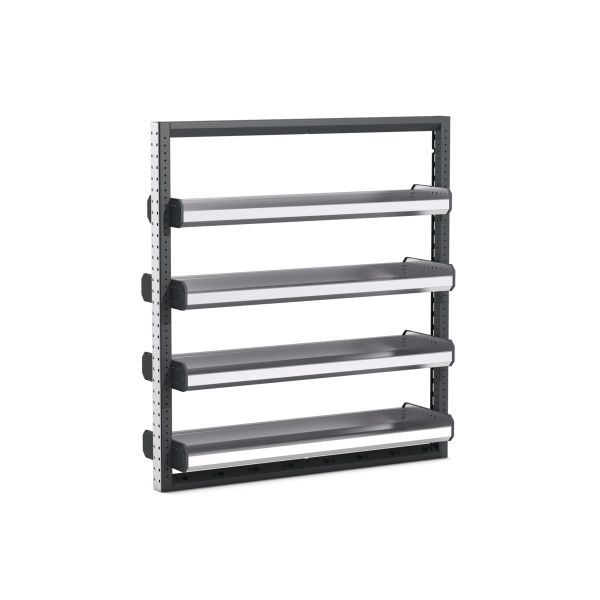

1 x Module M3-5601 - 19027709.19V ex. VAT+ £491.20

Van Racking Module M3-5601 fits on the right-hand side to the existing fixing points in the van. Accessories can be adjusted within the metal frames, providing you with the flexibility to create a more efficient space as your work and tools evolve over time.

Frame
1 x 1170W x 1255H frame
1 x fixing pack with van specific brackets

Accessories (top to bottom)
1 x 1090W x 260D shelf with mat
3 x 1090W x 337D shelf with mat

Dimensions (mm) : 1170 x 337 x 1255

Weight (kg): 31.42

Load Capacity (kg): 75

This item is selected

https://bottsmartvan.co.uk/media/catalog/product/cache/12879b3171b2f046dad5cefdc89cdccd/m/o/mod_m3-5602_preview_2.jpg

1 x Module M3-5602 - 19027719.19V ex. VAT+ £600.65

Van Racking Module M3-5602 fits on the right-hand side to the existing fixing points in the van. Accessories can be adjusted within the metal frames, providing you with the flexibility to create a more efficient space as your work and tools evolve over time.
Frame
1 x 1170W x 1255H frame
1 x fixing pack with van specific brackets

Accessories (top to bottom)
1 x 1090W x 260D shelf with mat
3 x 1090W x 337D shelf with mat
2 x 130W x 298D bottBox kit (8 boxes per shelf)

Dimensions (mm) : 1170 x 337 x 1255

Weight (kg): 39.72

Load Capacity (kg): 75

This item is selected

https://bottsmartvan.co.uk/media/catalog/product/cache/12879b3171b2f046dad5cefdc89cdccd/m/o/mod_m3-5603_preview_2.jpg

1 x Module M3-5603 - 19027729.19V ex. VAT+ £516.15

Van Racking Module M3-5603 fits on the right-hand side to the existing fixing points in the van. Accessories can be adjusted within the metal frames, providing you with the flexibility to create a more efficient space as your work and tools evolve over time.

Frame
1 x 1170W x 1255H frame
1 x fixing pack with van specific brackets

LH Accessories (top to bottom)
3 x 530W x 135D x 375H perfo panel
1 x 1255H frame full internal upright

RH Accessories (top to bottom)
1 x 530W x 260D shelf with mat
3 x 530W x 337D shelf with mat

Dimensions (mm) : 1170 x 337 x 1255

Weight (kg): 33.35

Load Capacity (kg): 75

This item is selected

Bulkhead (BH1) £0.00

Select from one of the following racks for the bulkhead.

If not required, leave unselected.

https://bottsmartvan.co.uk/media/catalog/product/cache/12879b3171b2f046dad5cefdc89cdccd/m/o/mod_m3-0901-01_preview_2.jpg

1 x Module M3-0901 - 19027318.19V ex. VAT+ £420.60

Bulkhead Module M3-0901 fits behind the bulkhead to the existing fixing points in the van. Accessories can be adjusted within the metal frames, providing you with the flexibility to create a more efficient space as your work and tools evolve over time.

Frame
1 x 1170W x 1255H frame
1 x fixing pack with van specific brackets

Accessories (top to bottom)
4 x 1090W x 59D x 200H perfo panel
1 x 1090W x 260D shelf with mat

Dimensions (mm) : 1170 x 260 x 1255

Weight (kg): 28.28

Load Capacity (kg): 75

This item is selected

https://bottsmartvan.co.uk/media/catalog/product/cache/12879b3171b2f046dad5cefdc89cdccd/m/o/mod_m3-0902-01_preview_2.jpg

1 x Module M3-0902 - 19027338.19V ex. VAT+ £470.15

Bulkhead Module M3-0902 fits behind the bulkhead to the existing fixing points in the van. Accessories can be adjusted within the metal frames, providing you with the flexibility to create a more efficient space as your work and tools evolve over time.

Frame
1 x 1170W x 1255H frame
1 x fixing pack with van specific brackets

Accessories (top to bottom)
1 x 1090W x 59D x 200H perfo panel
2 x 1090W x 135D shelf with mat
1 x 500H partial frame upright
1 x 530W x 185D shelf with mat
1 x 530W x 260D shelf with mat

Dimensions (mm) : 1170 x 260 x 1255

Weight (kg): 28.49

Load Capacity (kg): 75

This item is selected

https://bottsmartvan.co.uk/media/catalog/product/cache/12879b3171b2f046dad5cefdc89cdccd/m/o/mod_m3-0903-01_preview_2.jpg

1 x Module M3-0903 - 19027358.19V ex. VAT+ £453.65

Bulkhead Module M3-0903 fits behind the bulkhead to the existing fixing points in the van. Accessories can be adjusted within the metal frames, providing you with the flexibility to create a more efficient space as your work and tools evolve over time.

Frame
1 x 1170W x 1255H frame
1 x fixing pack with van specific brackets

Accessories (top to bottom)
2 x 1090W x 59D x 200H perfo panel
1 x 1090W x 135D shelf with mat
1 x 500H partial frame upright
1 x 530W x 185D shelf with mat
1 x 530W x 260D shelf with mat

Dimensions (mm) : 1170 x 260 x 1255

Weight (kg): 28.02

Load Capacity (kg): 75

This item is selected

https://bottsmartvan.co.uk/media/catalog/product/cache/12879b3171b2f046dad5cefdc89cdccd/m/o/mod_m3-0904-01_preview_2.jpg

1 x Module M3-0904 - 19027378.19V ex. VAT+ £475.70

Bulkhead Module M3-0904 fits behind the bulkhead to the existing fixing points in the van. Accessories can be adjusted within the metal frames, providing you with the flexibility to create a more efficient space as your work and tools evolve over time.

Frame
1 x 1170W x 1255H frame
1 x fixing pack with van specific brackets

Accessories (top to bottom)
1 x 1090W x 59D x 200H perfo panel
2 x 1090W x 135D shelf with mat
1 x 1090W x 185D shelf with mat
1 x 1090W x 260D shelf with mat

Dimensions (mm) : 1170 x 260 x 1255

Weight (kg): 30.1

Load Capacity (kg): 75

This item is selected

Raised Floor (F2) £0.00

Select from one of the following raised floors.

If not required, please leave empty.

https://bottsmartvan.co.uk/media/catalog/product/cache/12879b3171b2f046dad5cefdc89cdccd/m/o/mod_m3-d2105_preview_2.jpg

1 x 19005120.19M - Raised Floor M3-D2105 ex. VAT+ £278.75

Maximise your van's storage capacity with our half-length raised floor system.

Provides an extra layer of floor space while maintaining access to the side doors for larger vehicles and base floor.

The floor sits at a standard height of 375mm but can be lowered/heightended in 25mm increments by removing the supplied support.

Designed with integrated lashing points, it's perfect for transporting larger items and keeping the original floor space available for ladders or Euroboxes.

Note: Some accessories may require adjusting, repositioning or in some cases removing, to allow for the height of the top of the deck kit.

Dimensions (mm) : 1090 x 1058 x 376

Weight (kg): 32.19

Load Capacity (kg): 200

This item is selected

https://bottsmartvan.co.uk/media/catalog/product/cache/12879b3171b2f046dad5cefdc89cdccd/m/o/mod_m3-d2105b_preview_2.jpg

1 x 19005170.19M - Raised Floor M3-D2105B ex. VAT+ £316.50

Maximise your van's storage capacity with our half-length raised floor and Eurobox system.

Provides an extra layer of floor space while maintaining access to the side doors for larger vehicles and base floor.

The floor sits at a standard height of 375mm but can be lowered/heightended in 25mm increments by removing the supplied support.

Designed with integrated lashing points, it's perfect for transporting larger items and keeping the original floor space available for ladders or the provided Euroboxes.

Note: Some accessories may require adjusting, repositioning or in some cases removing, to allow for the height of the top of the deck kit.

Dimensions (mm) : 1090 x 1058 x 376

Weight (kg): 37.22

Load Capacity (kg): 200

This item is selected

https://bottsmartvan.co.uk/media/catalog/product/cache/12879b3171b2f046dad5cefdc89cdccd/m/o/mod_m3-d2236_preview_2.jpg

1 x 19005127.19M - Deck Kit M3-D2236 ex. VAT+ £507.80

Maximise your van's storage capacity with our full-length raised floor system.

Provides an extra layer of floor space while maintaining access to the base floor.

The floor sits at a standard height of 375mm, providing a useable underfloor height of 320mm.

Designed with integrated lashing points, it's perfect for transporting larger items and keeping the original floor space available for ladders or Euroboxes.

Note: Some accessories may require adjusting, repositioning or in some cases removing, to allow for the height of the top of the deck kit.

The full length underfloor system is great if you carry larger items and want to store them neatly. This can be used for keeping ladders, pipes and other long items safely stored.
Deck may restrict full access to load-through hatch bulkheads.

Dimensions (mm) : 1090 x 2368 x 376

Weight (kg): 58.02

Load Capacity (kg): 300

This item is selected

https://bottsmartvan.co.uk/media/catalog/product/cache/12879b3171b2f046dad5cefdc89cdccd/m/o/mod_m3-d2236b_preview_2.jpg

1 x 19005177.19M - Deck Kit M3-D2236B ex. VAT+ £583.25

Maximise your van's storage capacity with our full-length raised floor and Eurobox system.

Provides an extra layer of floor space while maintaining access to the base floor.

The floor sits at a standard height of 375mm, providing a useable underfloor height of 320mm.

Designed with integrated lashing points, it's perfect for transporting larger items and keeping the original floor space available for ladders or provided Euroboxes.

Note: Some accessories may require adjusting, repositioning or in some cases removing, to allow for the height of the top of the deck kit.

The full length underfloor system is great if you carry larger items and want to store them neatly. This can be used for keeping ladders, pipes and other long items safely stored.
Deck may restrict full access to load-through hatch bulkheads.

Dimensions (mm) : 1090 x 2368 x 376

Weight (kg): 68.05

Load Capacity (kg): 300

This item is selected

Summary

£278.75

Qty:

Related Products

Van Cab Organiser

The Van Cab Organiser provides simple and effective storage for paperwork, pens ...

SKU:63003098.19V

£130.12

ex. VAT

More details

Anchor Point for Tie-Down Straps (Pack of 2)

Mountable to the multiple fixing points on the front or inside of the van rackin...

SKU:19002029.19V

£20.50

ex. VAT

More details

Big Wipes Van System Starter Pack

Ensure your van, tools, and hands stay impeccably clean with the formidable BigW...

SKU:16514187

£56.73

ex. VAT

More details

TrekDror TKD1

Available in three different sizes and stackable. TrekDror offers the ultimate i...

SKU:17283718

£428.70

ex. VAT

More details

Eurobox 400 x 300 x 235 Dark Grey

Heavy-duty, long life reusable Eurobox Containers are manufactured to standard E...

SKU:02510047.19

£12.77

ex. VAT

More details

62626010.19V - Load Securing Strap 2.5m

Fixing to lashing points that are integrated into our van racking systems, the 2...

SKU:62626010.19V

£8.74

ex. VAT

More details

Buy More, Save More – Up to 20% OFF Learn more

Dispatch (2016 - ) Mk3 Panel Van, XL, Length: 5309mm, Sliding Door Dual

Citroen

Dispatch (2016 - ) Mk3 Panel Van

XL, Sliding Door Dual

Floor (F1) £0.00

Left Hand Rear (LH1) £0.00

Right Hand Rear (RH1) £0.00

Right Hand Front (RH2) £0.00

Bulkhead (BH1) £0.00

Raised Floor (F2) £0.00

Summary

Store

Support

Useful Links

Service

Follow us on

Buy More, Save More – Up to 20% OFF Learn more

Buy More, Save More – Up to 20% OFF

Dispatch (2016 - ) Mk3 Panel Van, XL, Length: 5309mm, Sliding Door Dual

Citroen

Dispatch (2016 - ) Mk3 Panel Van

XL, Sliding Door Dual

Floor (F1) £0.00

Left Hand Rear (LH1) £0.00

Right Hand Rear (RH1) £0.00

Right Hand Front (RH2) £0.00

Bulkhead (BH1) £0.00

Raised Floor (F2) £0.00

Summary

Get Special Offers & Savings
